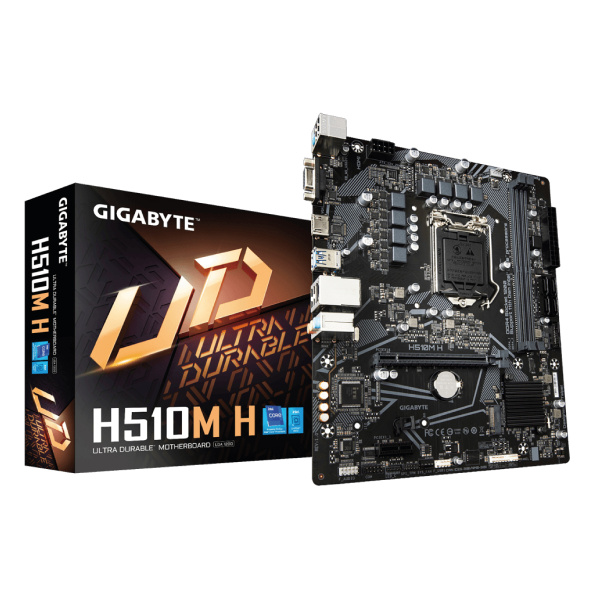

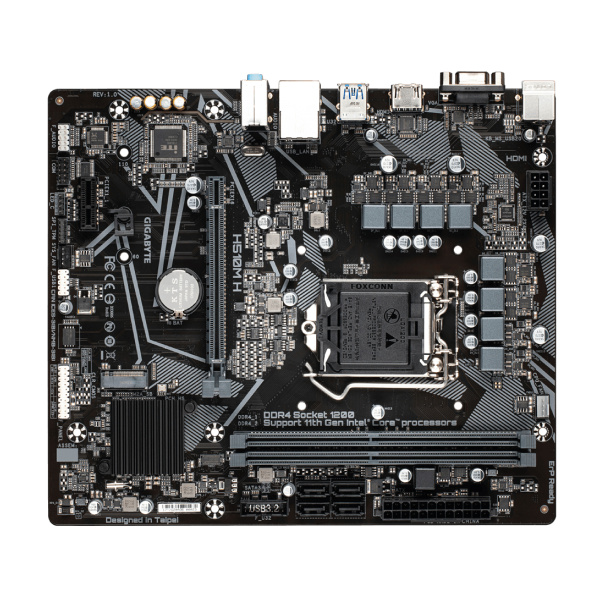

MOTHER GIGABYTE H510M H

GIGABYTE

ESPECIFICACIONES TéCNICAS
Audio: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
BIOS: 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas: Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Chipset: Intel® H510 Express Chipset
Conectores del Panel Trasero: 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Conectores Internos de E/S: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Controlador de E/S: iTE® I/O Controller Chip
CPU: LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
L3 cache varies with CPU
Soporta Intel® 14 nm CPU
Soporta Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Diseño: Micro ATX Form Factor; 24.4cm x 21.0cm
Graficos: Integrados Intel® HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Interfaz de Almacenamiento: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
LAN: Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Marca: GIGABYTE
Memoria: 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Monitorización H/W: Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
Puertos de Expansión: 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Sistema Operativo: Support for Windows 10 64-bit
Software Incluido: Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
USB: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
